Dynamic Data Masking in SQL Server 2016 or Later

Dynamic Data Masking in SQL Server or later, is another data protection feature originally shipped with SQL Server 2016. It limits sensitive data exposure by masking it to non-privileged users. The masking rules are applied in the query results and you designate how much of the sensitive data to reveal and to who.



SQL Server Dynamic Data Masking Methods

The Dynamic Data Masking feature provides four types of masking methods:
  • Default:
    • Full masking according to the data types of the designated fields.
  • Email: Masking method which exposes the first letter of an email address and the constant suffix “.com”, in the form of an email address. . aXXX@XXXX.com.
  • Custom String:Masking method that exposes the first and last letters and adds a custom padding string in the middle. prefix,[padding],suffix
  • Random: A random masking function for use on any numeric type to mask the original value with a random value within a specified range.




Strengthen your SQL Server Administration Skills – Enroll to our Online Course!

Check our online course on Udemy titled “Essential SQL Server Administration Tips
(special limited-time discount included in link).

Via the course, you will learn essential hands-on SQL Server Administration tips on SQL Server maintenance, security, performance, integration, error handling and more. Many live demonstrations and downloadable resources included!

Essential SQL Server Administration Tips - Online Course with Live Demonstrations and Hands-on Guides
Lifetime Access / Live Demos / Downloadable Resources and more!

Enroll Now with Discount!


A Simple SQL Server Dynamic Data Masking Demo

A simple example of Dynamic Data Masking is to display only the last 4 digits of a phone number to the support personnel of an IT Department or don’t show the email address to unauthorized users, etc.

Now let’s proceed with a demo in order to see some examples of using Dynamic Data Masking.

/*
Demo: Dynamic Data Masking
*/

--Create a sample database
IF DB_ID('SampleDB_DataMasking') IS NULL
BEGIN
CREATE DATABASE SampleDB_DataMasking;
END
GO

--Use sample database
USE SampleDB_DataMasking;
GO

--Create sample table
CREATE TABLE tblEmployeesMasking
    (
      empName VARCHAR(250) ,
      empPhoneNo VARCHAR(20) ,
      empEmailAddress VARCHAR(100)
    );
GO

--Populate sample table with data
INSERT  INTO dbo.tblEmployeesMasking
VALUES  ( 'John Clarck', '545-5478-1234', 'john.clark@example.com' ),
        ( 'Kostas Andreou', '878-8888-5678', 'kostas.andreou@example.com' ),
        ( 'Wei Xing', '673-5123-9101', 'wei.xing@example.com' );

--Check records (unmasked)
SELECT * FROM tblEmployeesMasking

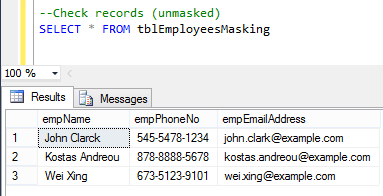

Output 1:

SQL Server Dynamic Data Masking - Article on SQLNetHub



--Now let's mask the email address
ALTER TABLE dbo.tblEmployeesMasking
ALTER COLUMN empEmailAddress VARCHAR(100) MASKED WITH (FUNCTION = 'email()');

Let's check again the records of the table, this time using a non-sysadmin user.

--Create user (non-sysadmin) with GRANT SELECT permission on the sample table
CREATE USER TestUser WITHOUT LOGIN;
GRANT SELECT ON dbo.tblEmployeesMasking TO TestUser;
GO

--Retrieve the table contents by running the query with TestUser
EXECUTE AS USER = 'TestUser';
SELECT * FROM dbo.tblEmployeesMasking;
GO

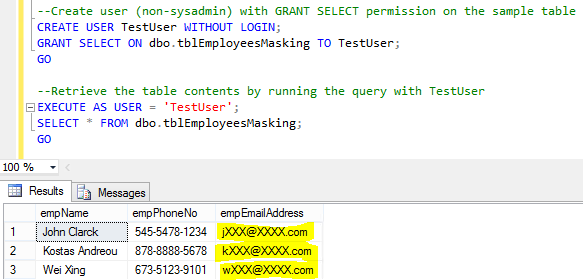

Output 2:

SQL Server Dynamic Data Masking - Article on SQLNetHub



As you can see in the above screenshot, the column’s ’empEmailAdress’ values are presented as masked.



OK. So now let’s switch the execution context back our original login’s context in order to proceed with masking the ’empPhoneNo’ column:



REVERT;
GO

--Let's mask the phone number with default
ALTER TABLE dbo.tblEmployeesMasking
ALTER COLUMN empPhoneNo VARCHAR(100) MASKED WITH (FUNCTION = 'default()');

Let's check the records of the table using a non-sysadmin user.

--Retrieve the table contents by running the query with TestUser
EXECUTE AS USER = 'TestUser';
SELECT * FROM dbo.tblEmployeesMasking;
GO

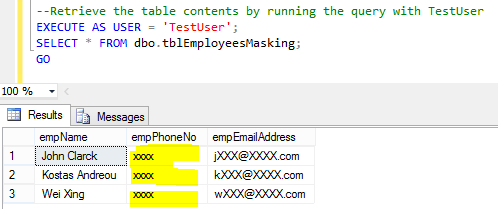

Output 3:

SQL Server Dynamic Data Masking - Article on SQLNetHub



Now you can see that the column ‘EmpPhoneNo’ is also masked.
The next test is to remove the ’empPhoneNo’ column’s masking and set a custom masking function:



REVERT;
GO

--Remove masking
ALTER TABLE dbo.tblEmployeesMasking
ALTER COLUMN empPhoneNo VARCHAR(100)

--Let's mask the phone number with custom function
ALTER TABLE dbo.tblEmployeesMasking
ALTER COLUMN empPhoneNo VARCHAR(100) MASKED WITH (FUNCTION = 'partial(3,"-XXXX-XX",2)');



Let’s check the records of the table using a non-sysadmin user.
--Retrieve the table contents by running the query with TestUser
EXECUTE AS USER = 'TestUser';
SELECT * FROM dbo.tblEmployeesMasking;
GO

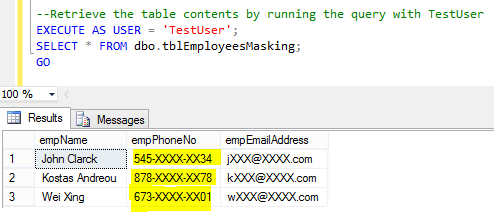

Output 4:

SQL Server Dynamic Data Masking - Article on SQLNetHub



As you can see from the above screenshot, now the empPhoneNo column is masked based on our custom masking function.



Last, if you want to allow ‘TestUser’ to be able to see the masked data, you can grant her or him the UNMASK permission:



REVERT;
GO

-- Granting the UNMASK permission
GRANT UNMASK TO TestUser;
GO

Let's check the records of the table within the context of 'TestUser':

--Retrieve the table contents by running the query with TestUser
EXECUTE AS USER = 'TestUser';
SELECT * FROM dbo.tblEmployeesMasking;
GO

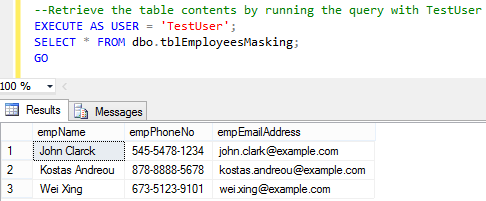

Output 5:

SQL Server Dynamic Data Masking - Article on SQLNetHub



Because TestUser was granted the UNMASK permission, it was possible to see the unmasked data.

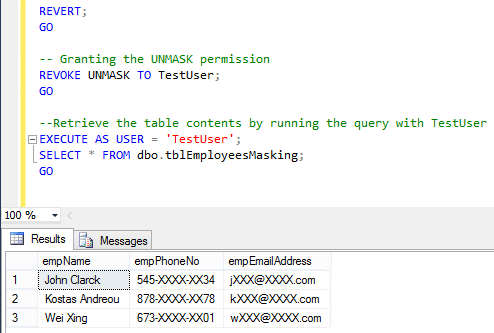

Similarly, if REVOKE the UNMASK permission, TestUser will only see the masked data:



SQL Server Dynamic Data Masking - Article on SQLNetHub



Discussion

Dynamic Data Masking is a significant feature in SQL Server 2016 and Azure SQL Database. As you can see from the above examples it is very easy to use it and it can really help you when it comes to Security and Compliance regarding yours or your organization’s most valuable asset: the data.
