How to Import and Export Unstructured Data in SQL Server – The IMAGE Datatype

In this article, we will be discussing about, how to import and export unstructured data in SQL Server, using the IMAGE datatype.



Introduction

Importing and exporting unstructured data from a database is a common practice, especially in large applications. SQL Server 2008 introduced the FILESTREAM feature that allows storing unstructured data (i.e. music, video, documents, etc.) onto the NTFS file system and manipulating it via the Database Engine. SQL Server 2012 introduced FileTables which is an enhancement to FILESTREAM.

With this post I am starting a series of articles that will deal with the topic of storing, manipulating and extracting unstructured data from SQL Server.



Let’s See a Full Example of Using the Datatype

In this article we are going to see how it is possible to import and export binary objects in SQL Server 2005. Instead of saying more I would just like to show you by example how you can do this.

For this example, consider that we have the following two objects:

    • SampleImage.png
    • SampleTextFile.txt

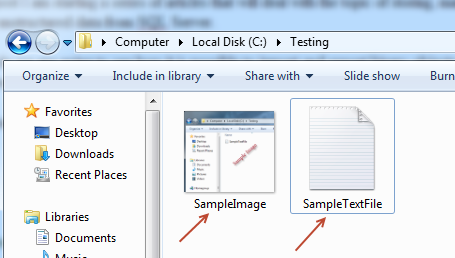

How to Import and Export Unstructured Data in SQL Server - The IMAGE Datatype (Article on SQLNetHub)
Figure 1: The two sample files for the BLOBs example.



Let’s take a closer look at the files just for checking out their content:

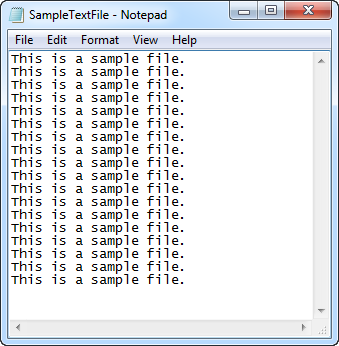

How to Import and Export Unstructured Data in SQL Server - The IMAGE Datatype (Article on SQLNetHub)
Figure 2: Content of SampleTextFile.txt

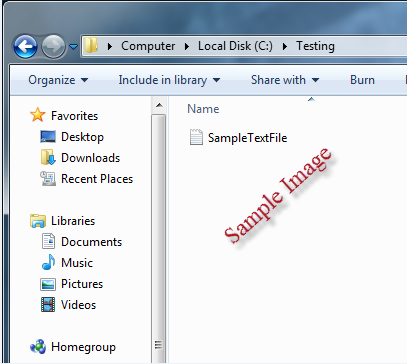

How to Import and Export Unstructured Data in SQL Server - The IMAGE Datatype (Article on SQLNetHub)
Figure 3: Content of SampleImage.png




Strengthen you SQL Server Development Skills – Enroll to our Online Course!

Check our online course titled “Essential SQL Server Development Tips for SQL Developers
(special limited-time discount included in link).

Via the course, you will sharpen your SQL Server database programming skills via a large set of tips on T-SQL and database development techniques. The course, among other, features over than 30 live demonstrations!

Essential SQL Server Development Tips for SQL Developers - Online Course
(Lifetime Access/ Live Demos / Downloadable Resources and more!)

Enroll Now with Discount!



Now let’s store these two files in a SQL Server table.

USE master;
GO

--Create test database
CREATE DATABASE [BinaryFilesDB];
GO

--Use test database
USE [BinaryFilesDB];
GO
--Create table that will be hosting the files
CREATE TABLE [dbo].[tblFiles](
[fileID] [bigint] IDENTITY(1,1),
[fileName] [nvarchar](255) NULL,
[binFile] [image] NOT NULL);
GO
--
--Import SampleTextFile.txt
--
INSERT INTO dbo.tblFiles
           ([fileName],[binFile])
VALUES     ('SampleTextFile.txt',(SELECT * FROM   OPENROWSET(BULK 'c:\testing\SampleTextFile.txt',SINGLE_BLOB) AS x))
GO


--
--Import SampleImage.png
--
INSERT INTO dbo.tblFiles
           ([fileName],[binFile])
VALUES     ('SampleImage.png',(SELECT * FROM   OPENROWSET(BULK 'c:\testing\SampleImage.png',SINGLE_BLOB) AS x))
GO

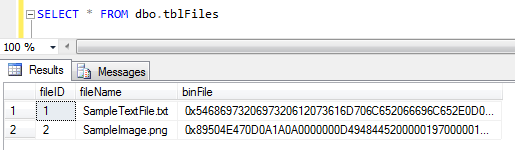

Let’s check the contents of “tblFiles” table:
How to Import and Export Unstructured Data in SQL Server - The IMAGE Datatype (Article on SQLNetHub)
Figure 4: Contents of the table after importing the binary files.
Let’s rename the files, just for performing a minor modification:
--Rename files
UPDATE tblFiles
SET fileName='SampleTextFileModified.txt'
WHERE filename='SampleTextFile.txt';
GO


UPDATE tblFiles
SET fileName='SampleImageModified.png'
WHERE filename='SampleImage.png';
GO



Let’s check the table contents again:
How to Import and Export Unstructured Data in SQL Server - The IMAGE Datatype (Article on SQLNetHub)
Figure 5: Renamed contents of table “tblFiles”.
Now let’s produce the export statements:
SELECT
'bcp "select binFile from BinaryFilesDB.dbo.tblFiles where fileid=' + cast (fileID as varchar(50)) + '" queryout "c:\testing\'+[filename]
+'" -f bcp.fmt -S .SQL2K14CTP2 -T' as RunTheseOnCommandPrompt
FROM BinaryFilesDB.dbo.tblFiles;
GO



Some notes on the above T-SQL statement: – SQL2K14CTP2 is the named instance of my SQL Server
– Also note that I am using Trusted (-T) connection for my generated bcp commands
– If you want to use username/password instead of a Trusted connection replace “-T” with -U [username] -P [password]

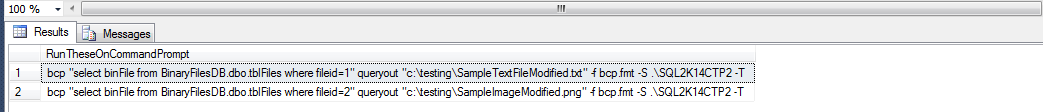

How to Import and Export Unstructured Data in SQL Server - The IMAGE Datatype (Article on SQLNetHub)
Figure 6: Generated statements for exporting the binary files.

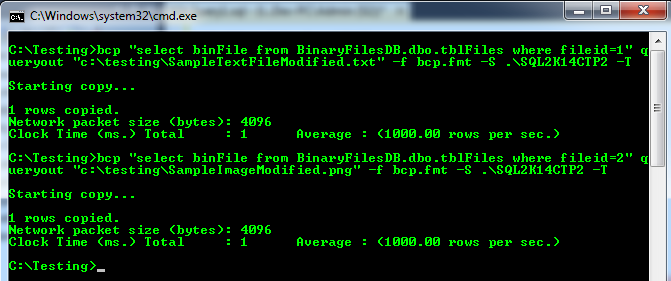

Now let’s run the two bcp commands on the command prompt:

How to Import and Export Unstructured Data in SQL Server - The IMAGE Datatype (Article on SQLNetHub)
Figure 7: Executing the bcp commands for exporting the binary files.

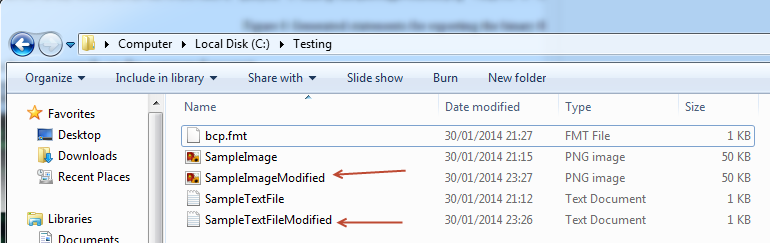

Also, let’s check the contents of the "c:\testing"  directory:

How to Import and Export Unstructured Data in SQL Server - The IMAGE Datatype (Article on SQLNetHub)
Figure 8: Binary files successfully exported from SQL Server.



As you can see, the two renamed files were successfully exported and have the exact same size as the original ones! I hope you enjoyed the article! Until next time!
